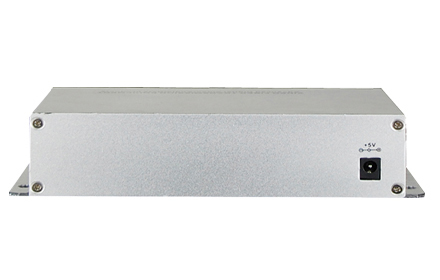

2* Video+1*Reverse Date Fiber Transceiver

Type:FCV-V2D1T/R Message

Description:2* Video+1*Reverse Date ，Data type RS232 / RS485 / RS422 / Manchester optional

Product Description
               This digital video optical transceiver adopts digital video encoding and gigabit optical fiber transmission technology. The multi-channel single-direction bi-direction audio, video, data, telephone, Ethernet and switch real-time synchronization, no-distortion and high quality transmission is on the single-core or dual-core optical fiber. Complete digital video non-compression transmission technology, with video and data condition indicator, can monitor the system normal operation. It uses modular design, the user can flexibly select or customize configuration based on the scene occasion. Rack installation or desktop installation can be optional. This product is made up of optical transmitter and receiver. It can transmit 2Channel forward direction Video and 1Channel reverse direction RS485 data.
Functional Properties
Ø Complete digital optical fiber transmission platform, same platform multi-service flexible configuration;
Ø Provide General desktop, Mini desktop, insert-card Rack;
Ø Based on self –copyright ASIC;
Ø   Can detect the remote device that is power off or broken fiber when it is matt
Ø   Compatible PAL/NTSC/SECAM system, studio-level transmission quality
Ø   Provide bi-directional asynchronous data (Forward Direction and Reverse Direction)
Ø   Asynchronous data, transmit rate more than 110-115.200Kbps
Ø   Asynchronous data can be RS232/RS485/RS422/Manchester code

Ø   Data interface and video interface provide three levels lightning-protection function，which can reach the ITU-T K.21 (10/700μs),

      CM (6KV), Impedance (40 Ω) test;

Technical Parameters

u  Fiber

     Connector:    FC/ ST/PC

     Wave length:  850nm/1310nm/1550nm
     Transmission distance:  multi-mode 0-2km, single-mode 0-25km, 0-60km, 0-120km     ;
     Transmitting power: better than -6dB
     Receiver sensitivity: better than -18dB
     Optical dynamic range: 12dB
     Optical maximum loss: 12dB
     Fiber: single-mode/multi-mode fiber, single fiber
     Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and

     patch panel. Transmission distance may also be limited by fiber optic bandwidth.

u  Video interface

    Video Bandwidth:   5Hz~10Hz
    Rate input & output Level:  1Vp-p
    Sampling Frequency:  16.4M (typical value)
    Signal Impedance:  75 Ω
    Signal Interface:  BNC/PAL/NTSC/SECAM
    Differential Gain (DG):  <1.3 %( typical value)
    Differential Phase (DP):  <1.3° (typical value)
    Signal Noise Ratio (SNR):  63dB

u   Date interface

    Data Interface:  RS-232、RS-422、RS-485、TTL
    Data Mode:  NRZ、Manchester、Bi-phase
    Data Rate:  110bps-115.200Kbps
    Interface Port:  RJ45

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤5W

u   Dimension

    Mini Type：           216（width）X140（depth）X31（height）mm
    19 inch 1U：           483（width）X138（depth）X44（height）mm

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

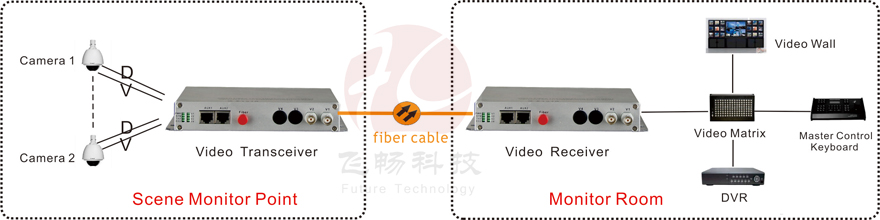

Application Scheme

Applications


DataSheet Download
