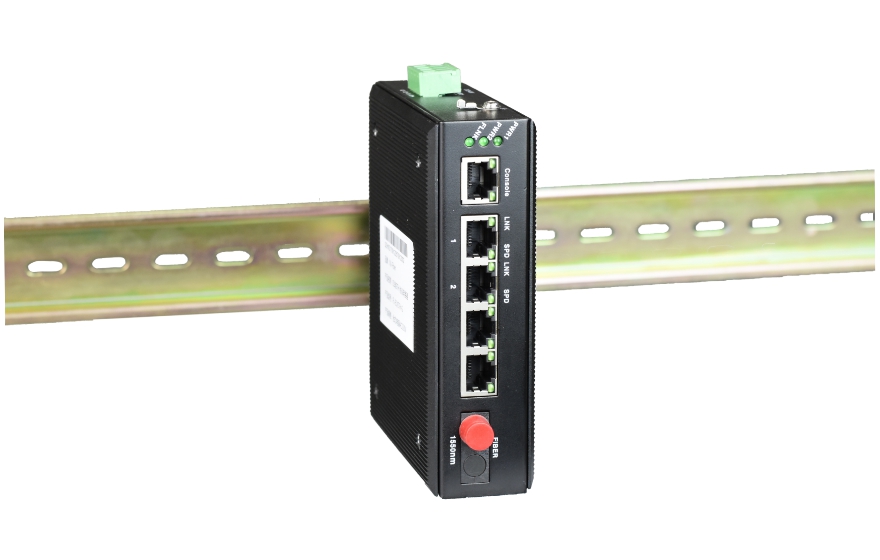

Managed 2* FE Fiber Media Converter

Type:FCMG-F2N Message

Description:This series of products are industrial grade conversion between 2*10/100base-T and 100base-FX fiber media conversion optical fiber network is mainly used for long-distance transmission (20/40/60/80/120 km). This product offers 100M optical

Product Description
    This series of products are industrial grade conversion between 2*10/100base-T and 100base-FX fiber media  conversion optical fiber network is mainly used for long-distance transmission (20/40/60/80/120 km). This product offers 100M optical Ethernet; 2*FE port.
    Ethernet switch chip +FPGA scheme based on OAM frame with remote management function support Console  /WEB / independent SNMP and 2U can also be inserted with SNMP network 1 optical transceiver card 1 electrical interconnection energy management to the equipment in SNMP software;
Functional Properties
◆ The industrial Ethernet series is designed for harsh industrial environments;
◆ The equipment provides 2 Fast Ethernet port 1 megabytes of light an optional Console/SNMP network port;
◆ The electrical interface (RJ45 interface) supports 10/100M adaptation full / half duplex mode and MDI/MDI-X automatic detection;
◆ Optical interface supports multimode fiber single-mode fiber double double optical fiber transmission mode of three kinds of fiber the optional SC/ST/FC/LC interface;
◆ It has the functions of broadcast storm protection balanced flow isolation conflict detection error and self reset of crash. It is suitable for video transmission and other large flow data applications;
◆ The built-in 1MBits high-speed transceiver can transmit images to avoid caching stuck  phenomenon IP camera monitoring screen in a rapidly changing environment caused by;
◆ Support for VLAN ultra long packet transmission and can be used to support the IEEE802.1Q protocol switch products support for the largest 10K bytes of Ethernet package;
◆ +FPGA scheme for Ethernet switch chip equipment with remote OAM management frame function and 2U card with SNMP network 1 optical transceiver card 1 electrical interconnection SNMP software can manage the equipment; can also support Console (CLI) /WEB / SNMP  network management independently;
◆ The network management real-time view and management of the end and the end of the Ethernet interface state and settings; equipment with power down detection function can detect when the optical signal lost for the terminal device power loss or optical fiber impassability;
◆ Supports wide range 9-55V AC and DC power input;
◆ Support for internal isolation redundant dual power input;
◆ The power supply supports overload protection and anti reverse connection protection;
◆ Comply with industrial grade four electromagnetic compatibility requirements;
◆ Super lightning protection function: against lightning resistance induction high voltage anti surge etc.;
◆ No fan high heat dissipation reduced repair time;
◆ Anodized aluminum housing IP40 protection level able to withstand the harsh environment test;

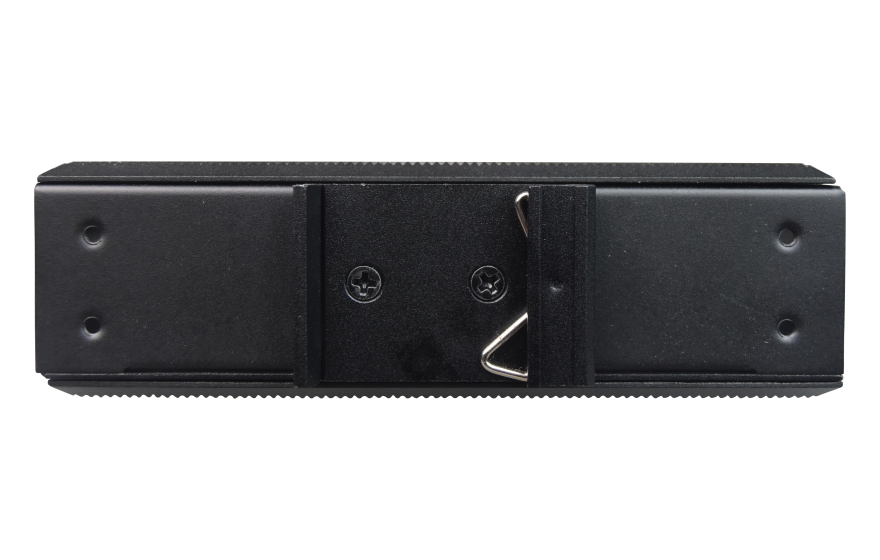

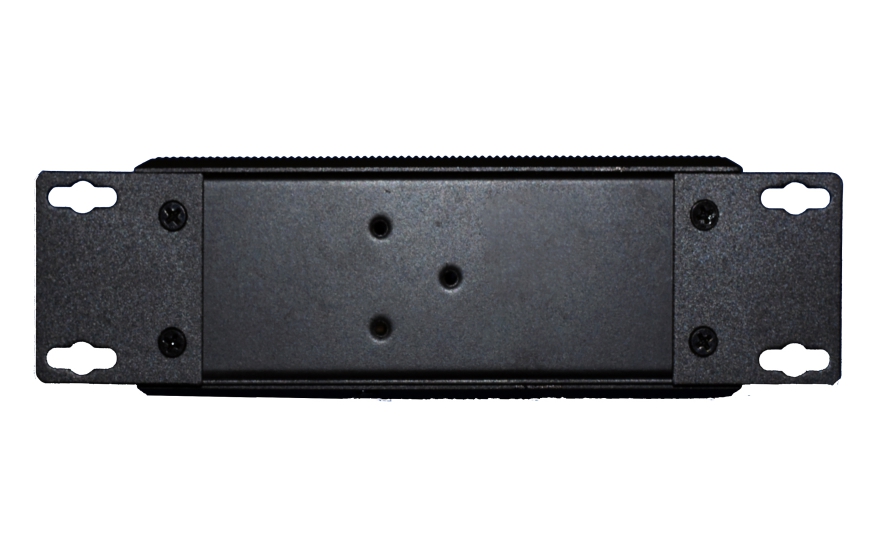

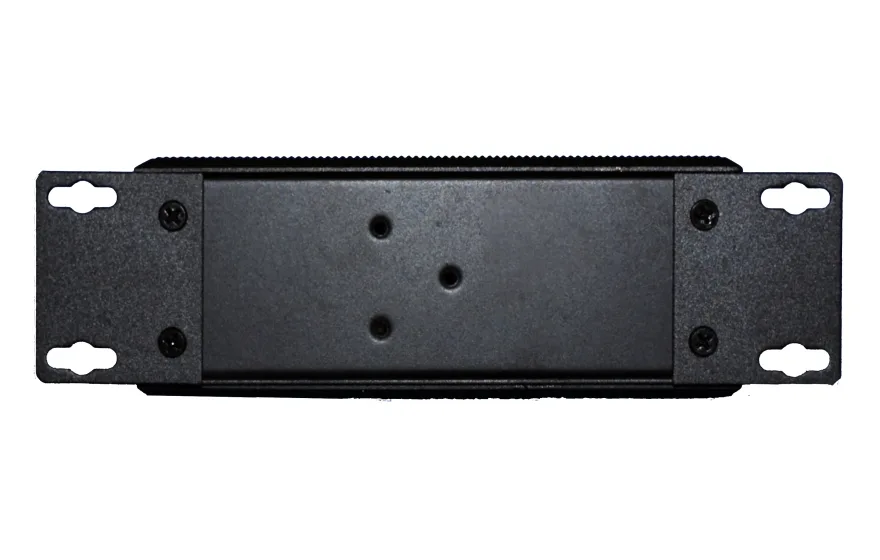

◆ Rail or wall mounting;
◆ Wide temperature range: working temperature -40 degrees ~ +85 degrees centigrade;
◆ All models are tested by 100% toaster guarantee period: 5 years;
Technical Parameters

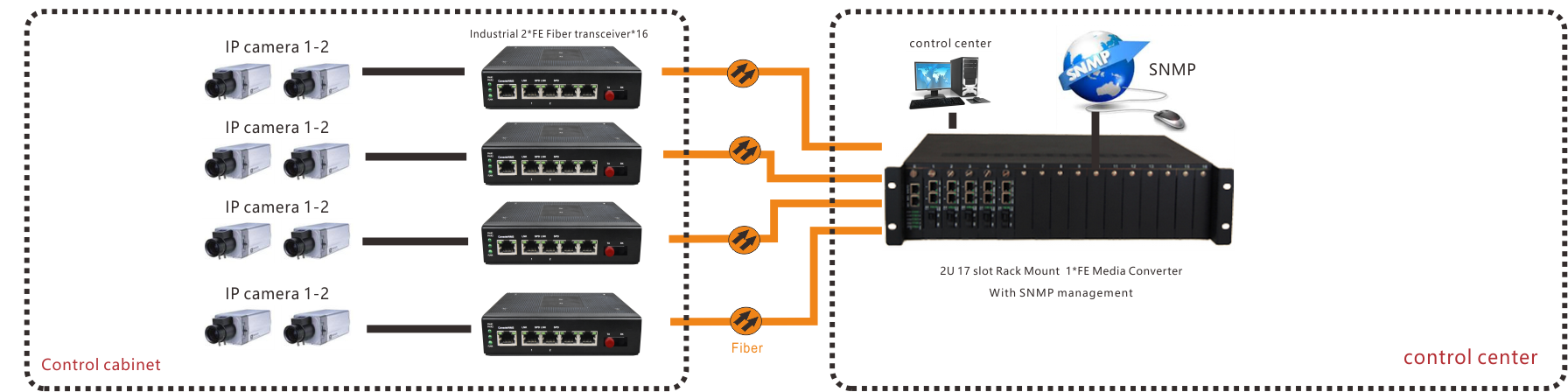

Application Scheme
DataSheet Download
