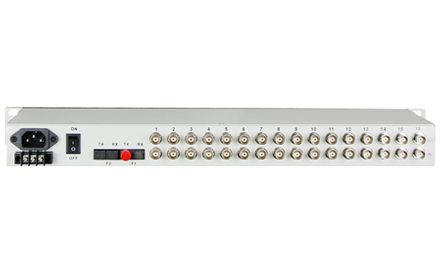

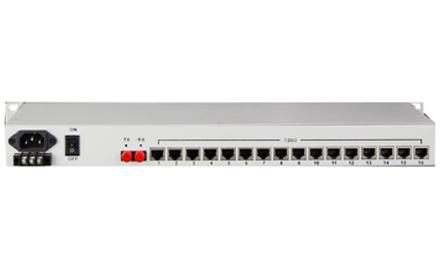

16E1+GE PDH Multiplexer

Type: Message

Description:16E1+GE PDH，order wire phone， 19\'\'inch 1U，（Standard telephone interface, non-telephone handles）Console，1+1 Back up Optic fiber

Product Description

           This device is the point-to-point optical transmission device developed on the basis of VLSI. The device  provides 1-16Channel E1 interface, 1Channel 10M/100M/1000M Ethernet interface (Line Rate 1000M) and 2 expansion interfaces. 4Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M).1Channel digital business phone can be optional.It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.


Functional Properties

Ø Based on self -copyright  IC

Ø The bandwidth is up to 1.5G, can save line sources

Ø Ethernet interface rate is 10M/100M/1000M, half/full duplex auto- adaptable

Ø 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical  isolation

Ø E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology

Ø 1Channel PCM digital business phone (optional)

Ø Provide Console management interface

Ø When optical lose signal, it can detect the remote device is power off or fiber is disconnected,  and indicates   alarm by LED

Ø The local device can view the remote device working condition

Ø Provide 2 expansion interface, you can extend 1~2Channel asynchronous data, such as RS232/RS485/RS422/Manchester code;

     1~2Channel voice, 1~2Channel E1，1~4Channel switch , or Provide command the remote interface Loop Back, ease line maintenance

Ø The transmission distance is up to 2-120Km without interruption

Ø AC 220V, DC-48V, DC24V can be optional

Ø DC-48V/DC24V power supply polarity detection function, Polarity-Free


Technical Parameters

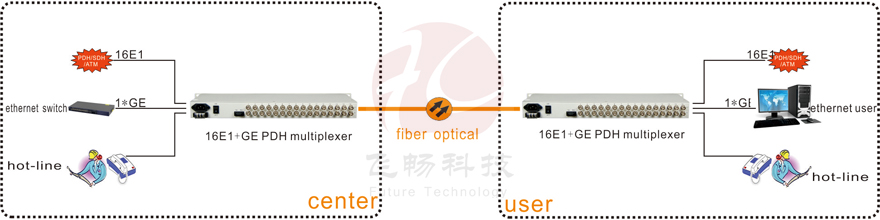

Application Scheme
DataSheet Download
