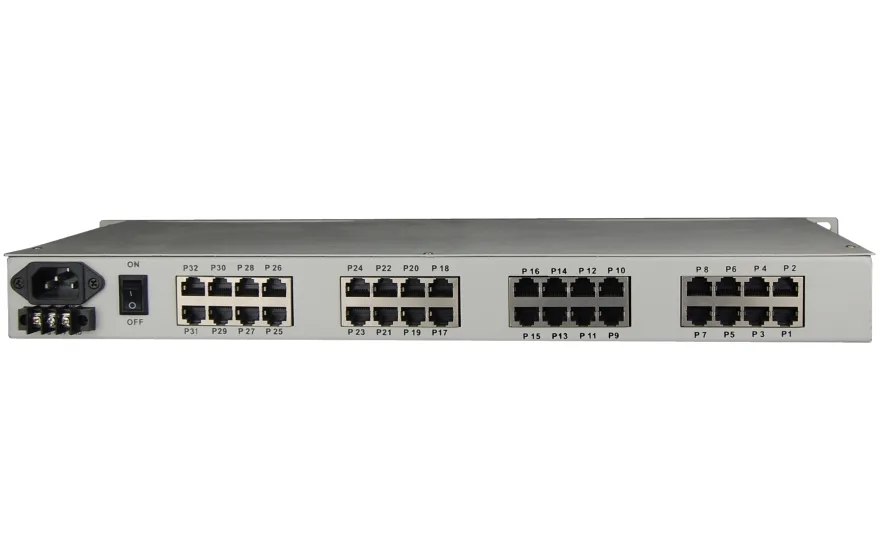

Fiber-32Voice + 4E1 + 4GE + 4*Serial Multiplexer

Type:FCP-O32E4G4R4/FCP-S32E4G4R4 Message

Description:The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interfa

Product Description
  The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interface can be used as RS232/RS485/RS422 asynchronous data /TTL signal/Dry Contact signal and other transmission channels, the application is very flexible.
Functional Properties
◆ Based on independent intellectual property rights of integrated circuits;
◆ Equipment to provide the main optical fiber interface and backup fiber interface,dual optical port backup function to ensure that business never interrupted;
◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recoveryand smooth phase-locked technology;

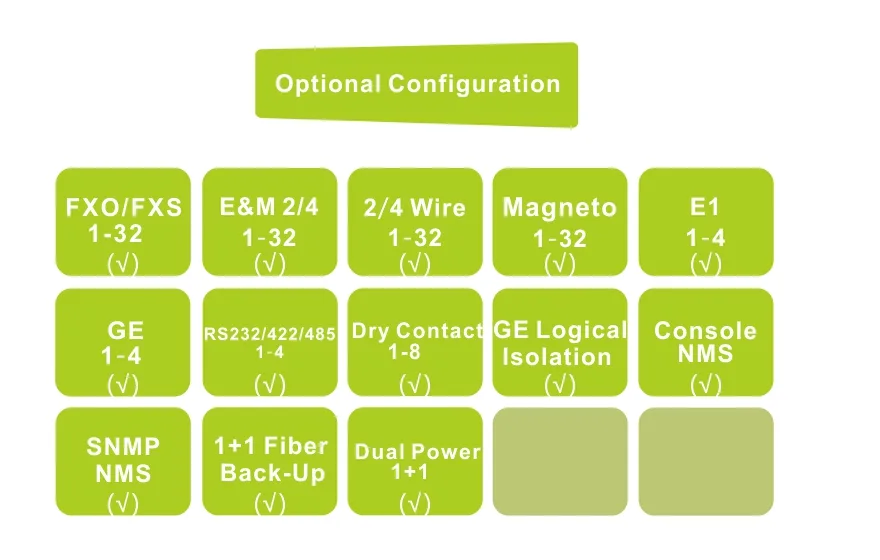

◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface,FXO port plug into PBX,FXS port is connected to the user's telephone;
◆ Voice FXO/FXS access, support for caller ID / reverse polarity billing / fax function;
◆ Both sides of the device support FXO+FXS hybrid access;
◆ Provide 4 expansion interface, you can extend 1 ~ 4 asynchronous data, such as RS232/RS485/RS422/TTL, etc .; or 1 to 8 dry contact;
◆ Gigabit Ethernet bandwidth for the wire speed 1000M, interface 10/100/1000M, full/half duplex fully adaptive, support VLAN division;
◆ 4 Gigabit Ethernet interface for the Switch port, can also be divided into VLAN, can be set to 4 channel logic isolation;
◆ Each Ethernet port supports Auto-MDIX (cross / direct line adaptation);
◆ No relay transmission distance of up to 2 to 100 km;
◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc .; support AC+DC; AC+AC; DC+DC and other dual power backup mode;
◆ Supports Console network management and independent SNMP network management mode;
◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
Technical Parameters
Application Scheme
DataSheet Download
