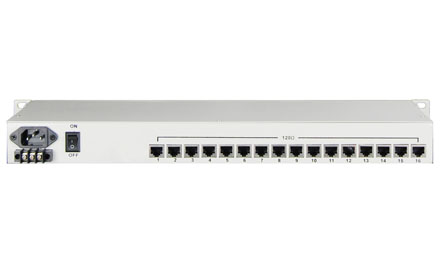

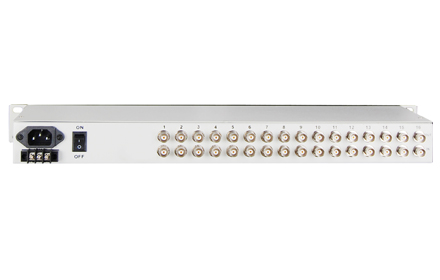

16E1 to 3x1000base-Tx +2x1000base-X Converter

Type:FCC-E16G3F2 Message

Description:16E1-3x1000base-tx and 2x1000base-x Converter Ethernet can be divided into logical isolation Encapsulated with GFP package support LCAS and LAPS protocolsupport independent SNMP network management;

Product Description
    The device using reverse direction multiplexing technology to bundle for multiple E1 to transmit the Ethernet data of 3Channel 1000base-TX and 2x1000base-X. It can realize 1~16 E1 convert between Ethernet optical interface to make E1 channels interconnected with Ethernet optical interface. Using GFP encapsulation support the LCAS (link capacity adjustment scheme) and LAPS protocol. this device can support 1-16Channel E1 channel configuration can automatically detect the number of E1 and select the E1 available. It allows E1 lines transmission time 1channel/4channel/8channel/16channel Ethernet bandwidth is 1984Kbit/s7936Kbit/s15872 Kbit/s31744Kbit/s.
     The device provides alarm function. The work is reliable stable and low power consumption high integration small size. Support SNMP Network

Functional Properties

Ø   Transparent transmission of Ethernet data in 1 to 16 E1 circuits;

Ø   Can be equipped with 3x1000base-t and 2x1000base-x Ethernet switching electrical interface for the user to save an Ethernet switch;

Ø   Ethernet 10/100/1000M full / half duplex fully adaptive support VLAN protocol;

Ø   Each port supports Ethernet support AUTO-MDIX (crossover cable and straight-line adaptation);

Ø   Ethernet interface is also optional optical interfaces to achieve optical Ethernet data transmission through the interconnection E1 far;

Ø   16-channel E1 lines the maximum delay difference between any two can reach 220ms; when the delay difference over 220ms the delay will produce poor overrun alarm while business interruption;

Ø   Built dynamic Ethernet MAC address list (4096) with local data frame filtering function;

Ø   E1 interface complies with ITU-T G.703 G.704 and G.823 do not support the use of signaling slots;

Ø   Timer mode the optional local timing and tracking E1 line timing E1 line timing source can be automatically switched according to the signal quality. Such as E1 line timing source system for the first Road E1 when the first E1 failure (serious warning LOS / AIS / LOF / CRC4 or signal generating loopback) and the second path E1 is working properly the system will automatically switch to the track The second road E1; elimination of the fault the system then automatically return to the track first road E1;

Ø   Compliance with ITU-T standard protocol GFP-F encapsulation suggestion G.7041 VCAT virtual concatenation and LCAS Link Capacity Adjustment recommendation G.7042 Ethernet mapping to nxE1 recommendation G.7043 Ethernet to single E1 map suggestion G. 8040;

Ø   When transmission bandwidth increases will not damage the Ethernet data; transmission bandwidth is artificially reduced it can also be realized without damaging the Ethernet data network;

Ø   E1 tributary  ends may not correspond by serial connection;

Ø   When a single slip direction E1 fails the other direction can still work;

Ø   E1 signal loop back and cut off the automatic detection function: When detecting the occurrence of a road E1 signal loop the system cut off this E1; loopback released E1 automatic recovery use this road;

Ø   Complete alarm indication choose to display local / remote alarm;

Ø   Supports remote E1 line side loopback function to facilitate the testing of E1 lines;

Ø   Support local system for the remote system reset;

Ø   provide remote interface loopback command easy to line maintenance;

Ø   Console management interface provides for easy installation opening;

Ø   Configuration network management module support independent SNMP network management;

Ø   with this end in view the working status of remote device display function;

Ø   Multiple power mode options: AC220V DC-48V / DC24V and the like;

Ø   DC-48V / DC24V power supply with automatic polarity detection function when installed without distinction between positive and negative.

Technical Parameters

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100/1000M)

    Interface rate:              10/100/1000 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension



    Product size:  19 inch 1U   485X138X44mm(WXDXH)
    Piece weight :  1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

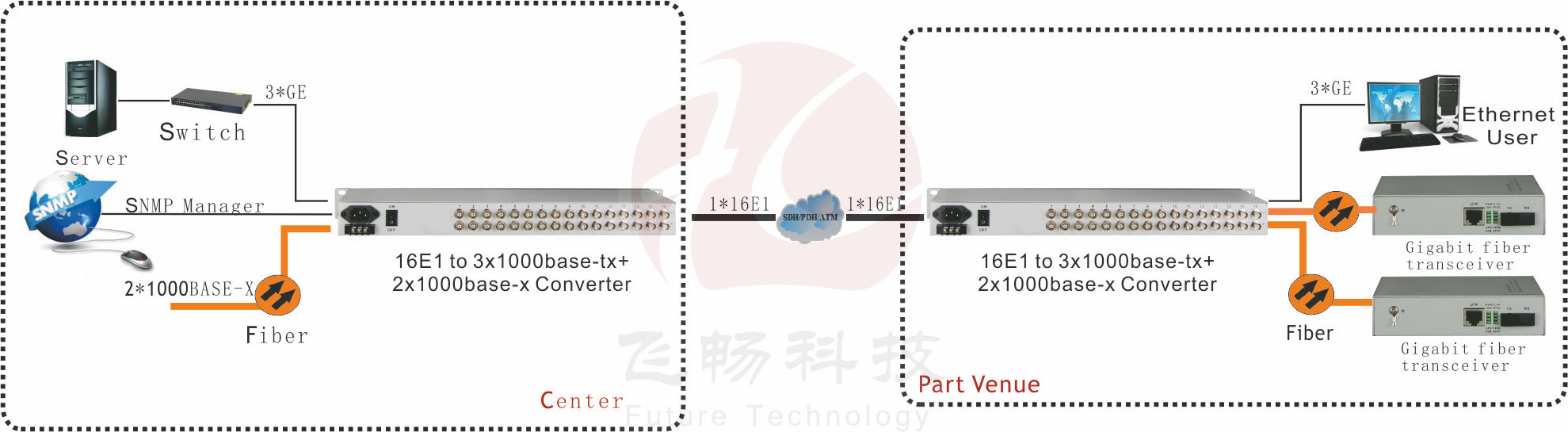

Application Scheme
