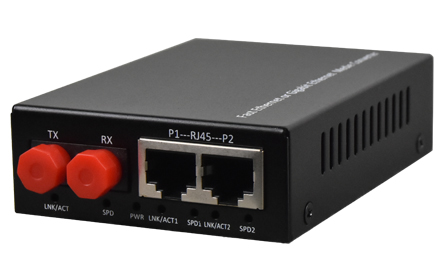

2GE fiber media converter(external power)

Type:FCM-G2L-B Message

Description:2 * 10 / 100/1000M fiber media converter，standard 0-25KM ，external power supply, and three anti-function.

Product Description
   This series of products are IEEE802.3 Ethernet media converter, can be achieved between two media 10/100/1000M twisted pair fiber medium converting or extend the network transmission distance of optical fiber network, mainly used for long distance (20/40/60/80/100 km) transmission, the transmission speed of full support for 10/100/1000M.
Functional Properties
Ø International standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;
Ø Monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
Ø Support full and half duplex network communication, with auto-negotiation capability;
Ø VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;
Ø Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
Ø Low power consumption. Low heat, stable operation for a long time;
Ø Single fiber and within the external power supply options, expand the user's needs;

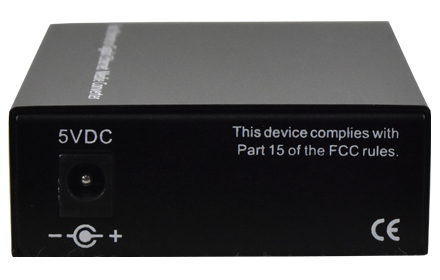

Ø External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
Technical Parameters
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Ethernet interface(10/100/1000M)
Interface rate:   10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability:  4096
Connector:    RJ45, support Auto-MDIX
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

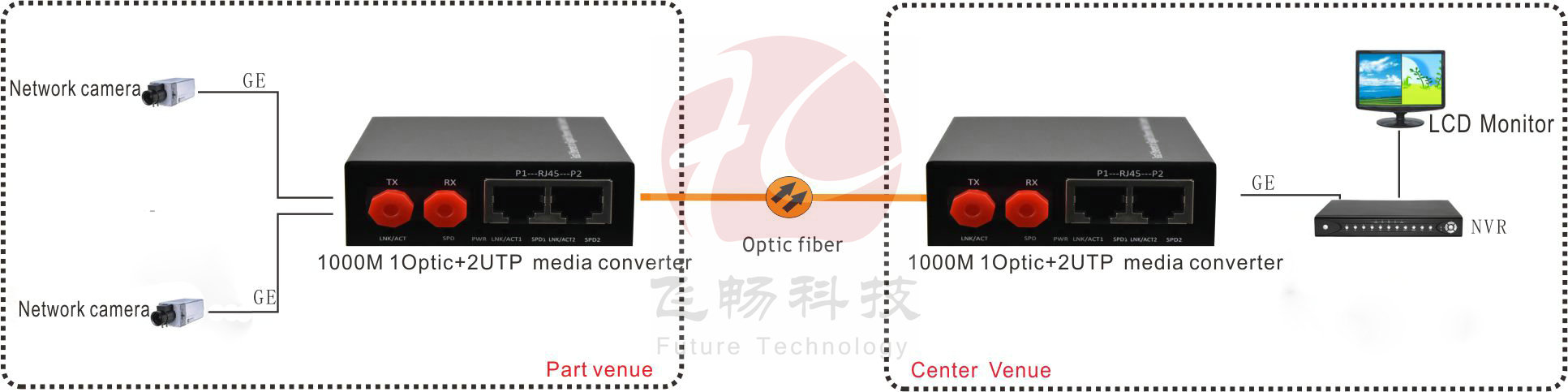

Application Scheme

Applications


DataSheet Download
