FE Fiber Media Converter（Network Type）

Type:FCM-F1 Message

Description:2U Rack，SNMP，management remote FE fiber media Converter

Product Description
              This series is IEEE802.3 Ethernet media converters can achieve 10 / 100Base-T twisted pair and 10 / 100Base-FX or 10,100Base-T twisted pair and 10,100Base-FX between the two kinds of media the media conversion or extension of the network transmission distance, mainly for long-distance fiber-optic networks (20/40/60/80/120 km) transmission, fully supports 10 / 100M or 10M, 100M transmission rate, optical and electrical ports can working at a rate of 10M or 100M transmission applications.
              Chassis for 2U 17 in the chassis. Rack height 2U, 17 can be inserted into the optical fiber transceiver card, or a network card, 16 fiber optic transceiver cards, each card to work independently; isolation using communications technology to the system power and interface card is completely separate, to ensure that the the reliability of the entire system.
Functional Properties
Ø automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
Ø monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
Ø support full and half duplex network communication, with auto-negotiation capability;

Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support

      up to 1600-byte Ethernet packets;

Ø infrastructure equipment can manage to peer desktop fiber optic transceivers

Ø Support LFP (Link Fault Pass Through) function, when the fiber optic and twisted pair transceiver connected to either ends of a failure,

       notify the other end of the transceiver display error messages

Ø have FiberAlter, automatic cut-emitting optical path (open NMS) that receive light signals;
Ø FX holding half / full duplex and link failure alarm switch selection;
Ø Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
Ø support SNMP network management rack, 2U chassis can be inserted 16 fiber optic transceiver cards
Ø low power consumption. Low heat, stable operation for a long time;
Ø single fiber can choose to expand the user's needs
Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm, 1550nm

    Interface rate:              100 M, half/full duplex

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   443 X365 X110mm(WXDXH)

   Piece weight:  5.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

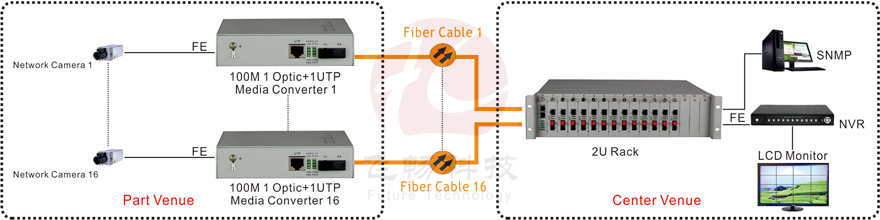

Application Scheme

Applications
