2 Channel Physical lsolation GE Fiber Media Converter

Type:FCM-G2p Message

Description:2 channel physical isolation 1000M Ethernet ， total Bandwidth Bi-Directional 2*1000M

Product Description
 This series is IEEE802.3 Ethernet media converter, enabling four 10/100/ 1000Base-T through the optical fiber transmission, where 1,2 and 3,4 port to achieve physical isolation, were able to achieve two-way 1000M bandwidth, fiber distance (20/40/60/80/100 km), the total bandwidth of two-way 2000M.
    Two Gigabit Ethernet port has its own independent gigabit bandwidth transmission via an optical fiber, Ethernet, peer received completely independent, non-interfering, independently of each other, that is, the physical isolation. the whole stable, reliable, low power consumption, high integration, small size.
Application occasions:
    Ø  finance, securities, security and construction sectors while within the network and the public information network, and requires a high degree of physical separation of the two networks for the occasion;
    Ø  cable resources particularly intense at the same time requires a lot of separate Ethernet path of the occasion;
    Ø  very suitable for use in the optical path without changing the existing situation on the DSLAM bandwidth expansion;

Functional Properties
Ø Atomatically adapt to 10/100 / 1000Mbps environment, easy to upgrade the network;
Ø provide physical isolation two 1000M Ethernet access line speed
Ø  support full-duplex and half-duplex network communication, with auto-negotiation capability, electrical ports MDI/MDI-X adaptive without manual adjustment;
Ø support Max MTU 10240 extra-long VLAN packets that can support IEEE802.1Q agreement Items matching switches use;
Ø two switch ports can be divided based VLAN PORT of this partitioning method does not affect the remote device
Ø devices with Console port supports super terminal control device
Ø 1,2-port switch, 3 and 4-port switch, 1,2 and 3,4 physical isolation
Ø 1,2 port can be set to VLAN isolation, 3,4 port too

Technical Parameters

u  Fiber


Optical encoding:              8B10B

Optical Rate:                   2.5G bps

         Multi-mode Fiber


    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  1000M Ethernet


Interface rate:                 10/100/1000M, half/full duplex auto-negotiation

Interface Standard:          Compatible with IEEE 802.3ab, IEEE 802.1Q

MAC Address Capability:  4096

Connector:                       RJ45, support AUTO-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

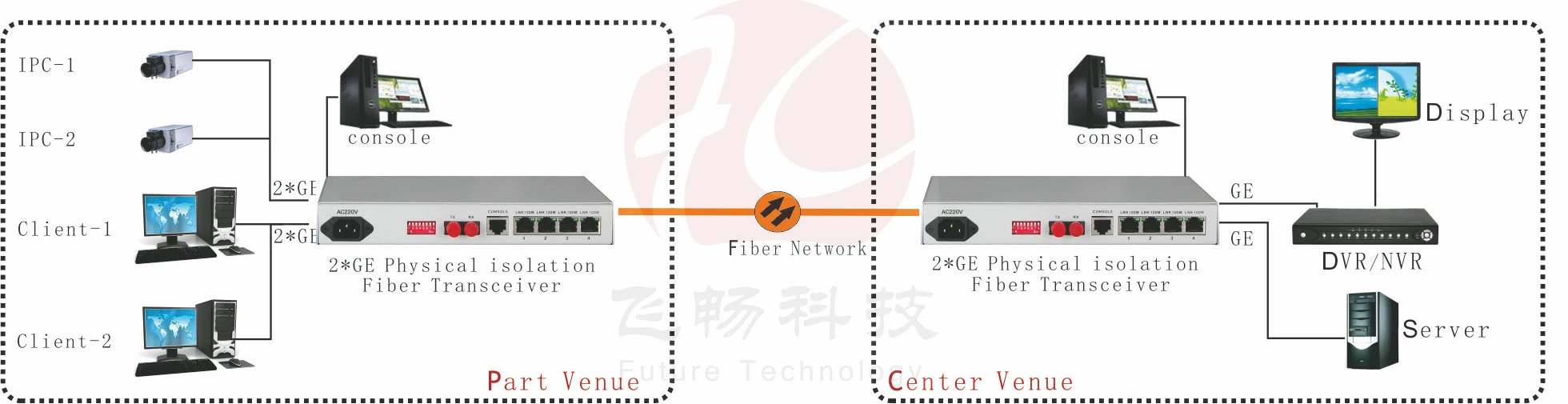

Application Scheme

Applications:



Note: Two Gigabit Ethernet physical isolation above the front IPC and even two Gigabit Ethernet PC, both of which have independent 1000M channel
