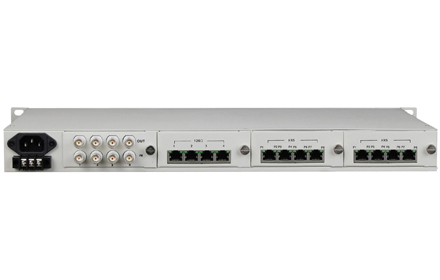

Modular multi-service Fiber MUX

Type:FC2PM-E16 Message

Description:LCD display，key control 4FE，With 4 multifunction slots， with ALS function，Console or SNMP，1+1 Back up Optic fiber max voice number:64

Product Description

        This device is modular structure point-to-point optical transmission equipment with LCD display uses the FPGA chips and easy to upgrade. The Main board provide 4*100M channel Ethernet data and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422 two optical interface for optional 1+1 auto protection switch (APS).

        4 slots of tributary with variant plug-in modules which included 4xE1 channels module 4/8/16 x FXO/FXS module and 2x Nx64K V.35 module.The maximum capacity will be up 4 plug-in modules which could be combinations with above modules.The high flexibility performance is the best solution for voice/data/video services in existed market.

Functional Properties

Ø Provides total 16 E1 transparent transmission capacity ;

Ø With char 16*2 LCD display and SNMP agent inside.

Ø Provide Console manage interface(RS232)

Ø Provice one hotline channel for option;

Ø Provide two SFP fiber interfaces one as master the other as slave insuring uninterrupted service transmission.

Ø The rate of optical port is 155Mbps transmission range can reach 25KM 40KM 60KM 80KM or 100KM;

Ø   Provide two fiber interface 1+1 protect（APS）function and ALS（Automatic Laser Shutdown/Reduction）function

Ø   Provide 4 slots plug-in modules:



         u 4×unframed E1 module（75Ω）/（120Ω）

         u 4×framed E1 module（75Ω）/（120Ω）any timesolts can be set

         u 4×FXO/FXS/EM2-4/Magnet telephone module

         u 8×FXO/FXS/2 line audio/Magnet telephone module

         u 16×FXO/FXS/2 line audio/Magnet telephone module

         u 2×V.35 (2.048M Fixed speed) module

         u 2×V.35 (N*64K N=1-32) module

         u 4×RS232/422/485 module

         u 4*FE to E1 bridge(wire speed 2.048M) module

Ø Provide 4FE(wire speed 100M)Ethernet channelsupport mutual negatiate Ethernet bandwidth is set on base on multiple of 32K.;

Ø Ethernet port supports full/half duplex 10M/100M auto-ataptable;

Ø Ethernet port supports VLAN function and has 4 devision mode for user selection;

Ø Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;

Ø Has complete alarm function and can monitor remote device status;

Ø Supports E1 loop from remote so as to detect and manage device conveniently;

Ø  The combination AC220V and DC-48V for redundant


Technical Parameters

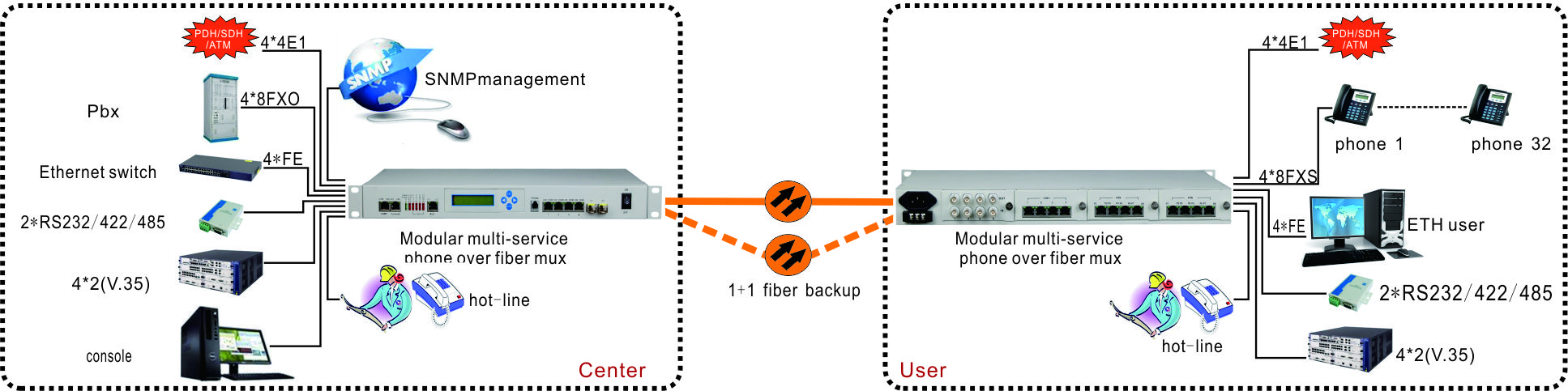

Application Scheme
