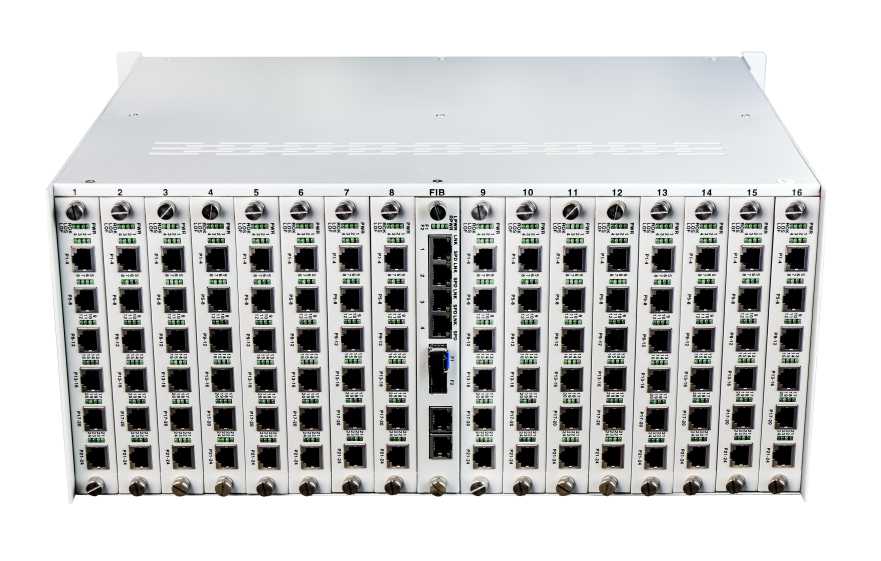

1-384*Voice RACK Mount Fiber Multiplexer

Type:FC2P-O256F4R2/FC2P-S256F4R2 Message

Description:4U rackmount multiplexer，1-384 * thelephone，4*100/1000 Mbps Ethernet，E1，Console or SNMP

Product Description

   1-384*Voice Fiber Multiplexer is designed based on FPGA. It is modular design the equipment is 4U chassis providing 1-384 phone 4 10/100M Fast Ethernet interface (wire speed 100M) or 4*10/100/1000M Gigabit Ethernet interface (wire speed 1000M) Or 4 physical isolation FE Ethernet interface (100M per wire speed independent bandwidth). But also 4 expansion of business interfaces such as RS232/485/422 asynchronous data /TTL signal/dry contact interface and other transmission channels the application is very flexible.

Functional Properties
◆   based on self -copyright  IC;
◆   Easy expansion increase the card can be easy to maintain change the card can be;
◆   Equipment for the 4U 19-inch chassis a total of a optical card (1+1 optional)  and 16 function cards the function card has 16*voice card/24*voice cards/8*2-4 wire E&M card/single E1 card/8*serial card+ 2 expansion interface such as RS232/485/422 asynchronous data/TTL interface/dry contact interface; the maximum configuration of this device is 384*voice if you want to configure the SNMP network management remove a piece of telephone card such as to configure 1*E1 board remove the 1 * voice card;
◆   384 Channel voice access support for caller ID / reverse polarity billing/fax function;
◆   Both sides of the device support FXO+FXS hybrid access;
◆   Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interfaceFXO port plug into PBXFXS port is connected to the user's telephone;
◆   4*10/100M Fast Ethernet interface(wire speed 100M) or 4*10/100/1000M Ethernet interface (wire speed 1000M) Or 4 physical isolation FE  interface (100M per wire speed independent bandwidth) is optional;
◆   Can command the remote interface loop back to maintain the circuit;
◆   No relay transmission distance of up to 2 to 120 km; to provide the main optical fiber interface and backup fiber interface dual optical port backup function to ensure that business never interrupted;

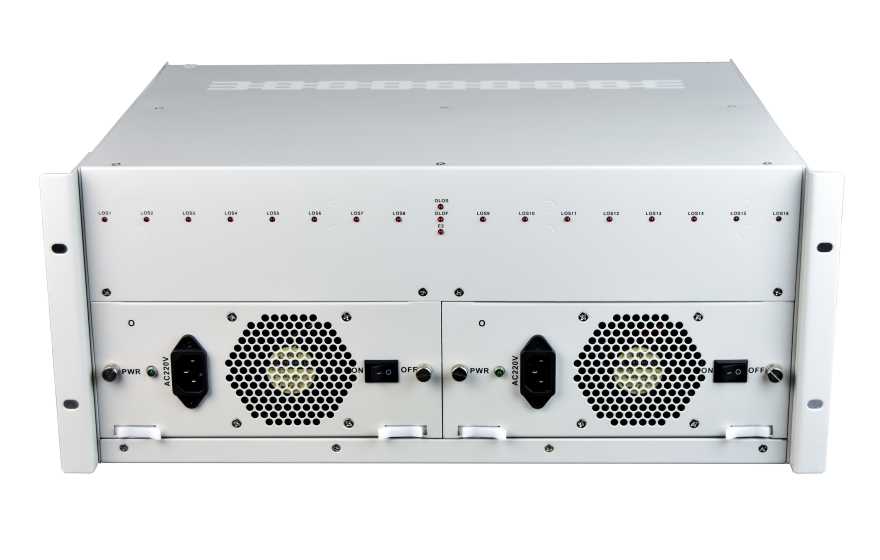

◆   Variety of power options: AC220V DC-48V etc .; support AC+DC; AC+AC;DC+DC and other dual power mode;
◆   DC-48V power  with automatic polarity detection installation without distinction between positive and negative.
◆   Telephone/Ethernet/Serial interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;



Technical Parameters

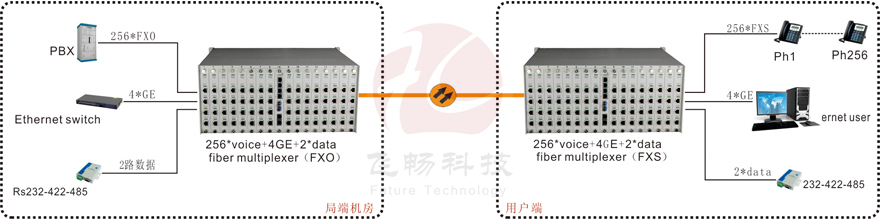

Application Scheme
DataSheet Download
