Fiber-64Voice + 4E1 + 4FE Multiplexer

Type:FCP-O64E4F4C1/FCP-S64E4F4C1 Message

Description:This series of products is developed based on FPGA. This device is 19-inch 1U rack-mounted, providing 64* Voice interface; 4*E1 interface; 4*FE Ethernet interface (Ethernet interface for the switch port, can support VLAN division), and shar

Product Description
  This series of products is developed based on FPGA. This device is 19-inch 1U rack-mounted, providing 64* Voice interface; 4*E1 interface; 4*FE Ethernet interface (Ethernet interface for the switch port, can support VLAN division), and share 100M bandwidth, Can be set through the SNMP port, that is, logic isolation; SNMP management interface and 1 +1 optical port backup; device work is reliable, stable, low power consumption, high integration, Small, easy to install and maintain.

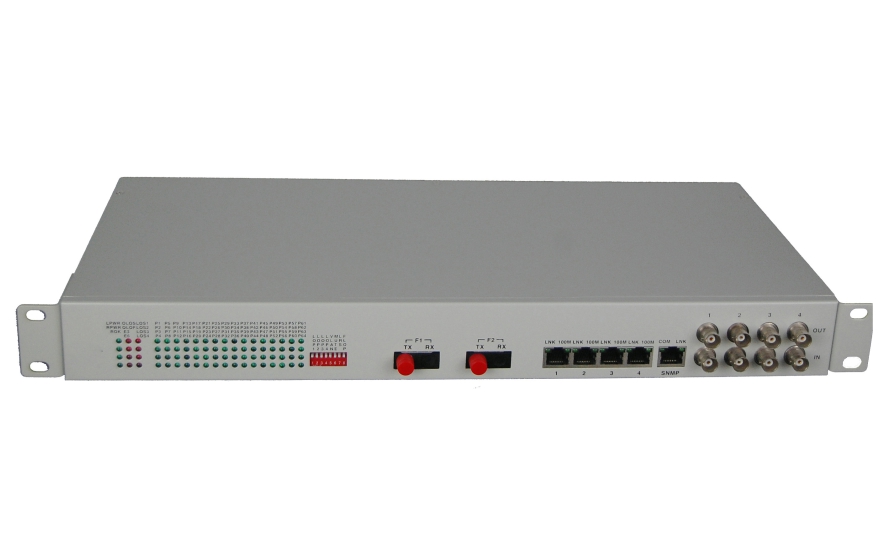

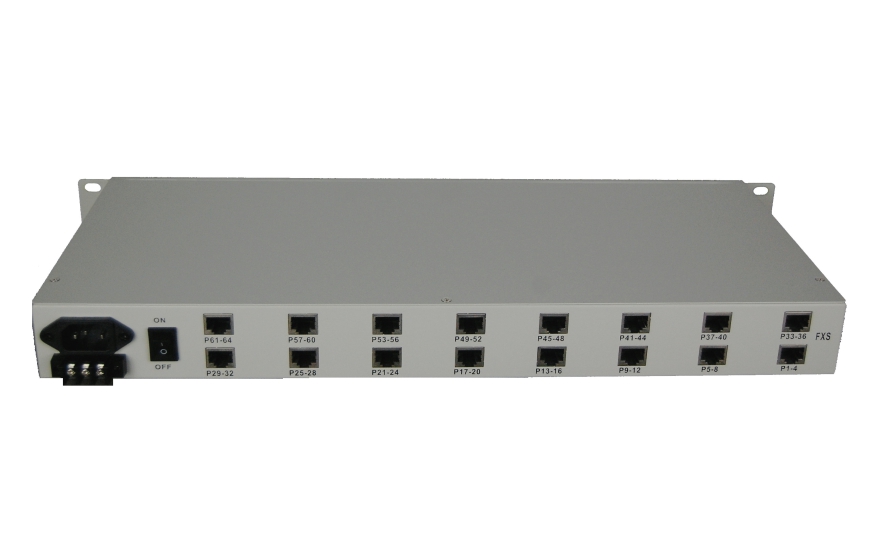

The product is 19 "1U rack mounted;

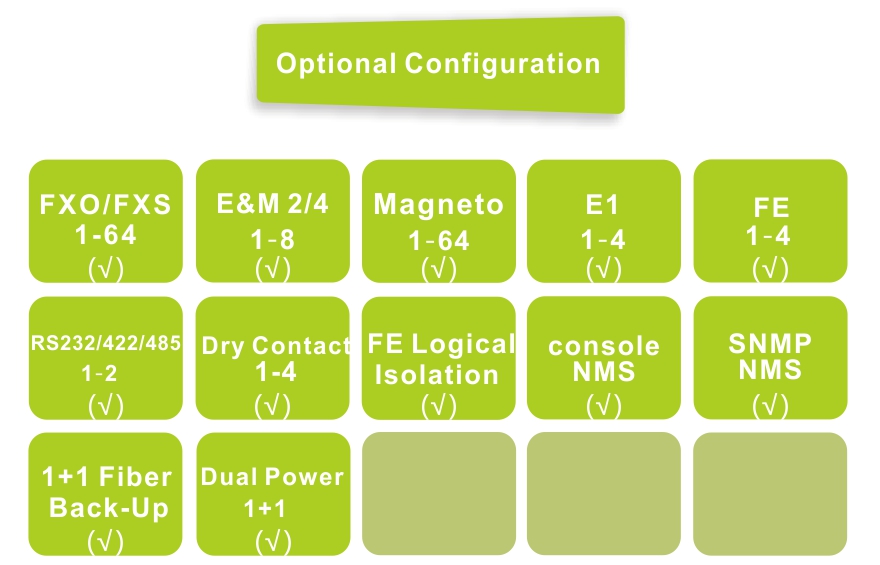

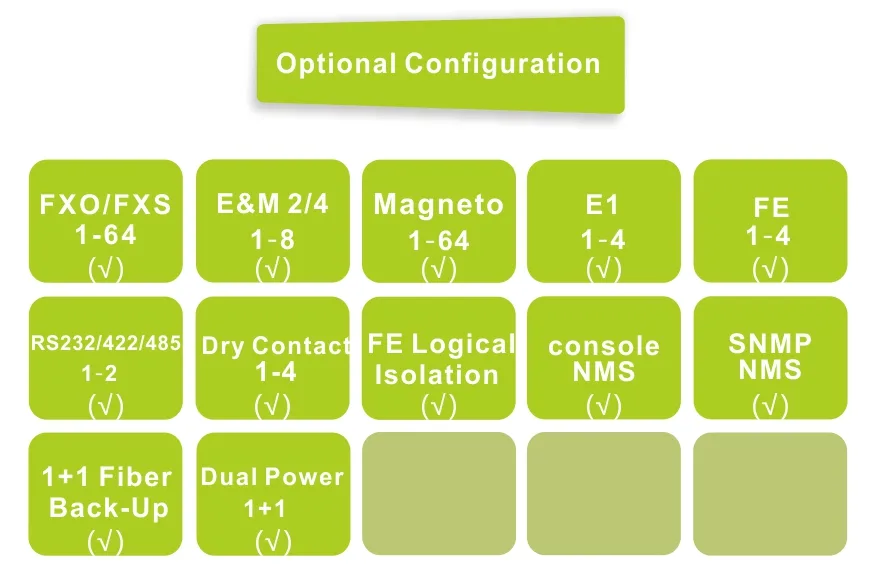

Functional Properties
◆ Equipment to provide the main optical fiber interface and backup fiber interface, dual optical port backup function to ensure that business never interrupted;
◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recovery and smooth phase-locked technology;
◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface, FXO port plug into PBX,  FXS port is connected to the user's telephone;
◆ Voice FXO/FXS access, support for caller ID / reverse polarity billing / fax function;
◆ Both sides of the device support FXO+FXS hybrid access;
◆ Provide 2 expansion interface, you can extend 1 ~ 2 asynchronous data, such as RS232/485/422 / TTL, etc .; or 1 to 4 Dry Contact;
◆ FE Ethernet bandwidth for the wire speed 100M, interface 10/100M, full/half duplex fully adaptive, support VLAN division;
◆ 4*FE interface for the switch port, VLAN can also be divided into four channels can be set to logic isolation;
◆ Each Ethernet port supports Auto-MDIX (cross / direct wire adaptation);
◆ No relay transmission distance of up to 2 to 120 km; support 1 +1 optical port backup, the main fiber has a problem, the backup fiber work;
◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc .; support AC+DC; AC+AC; DC+DC and other dual power backup mode;
◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
◆ Supports Console  management and independent SNMP management mode;
Technical Parameters

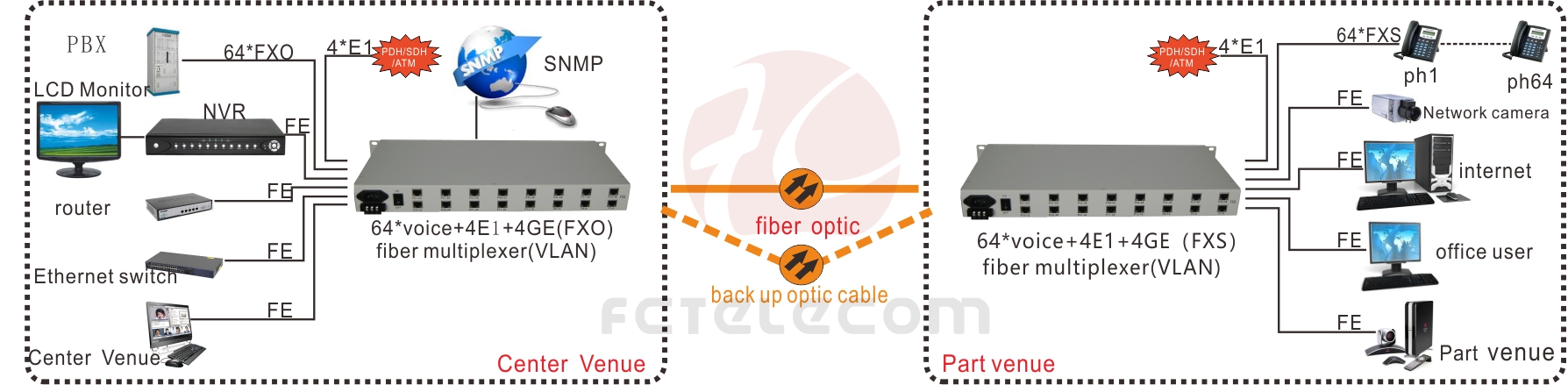

Application Scheme
DataSheet Download
