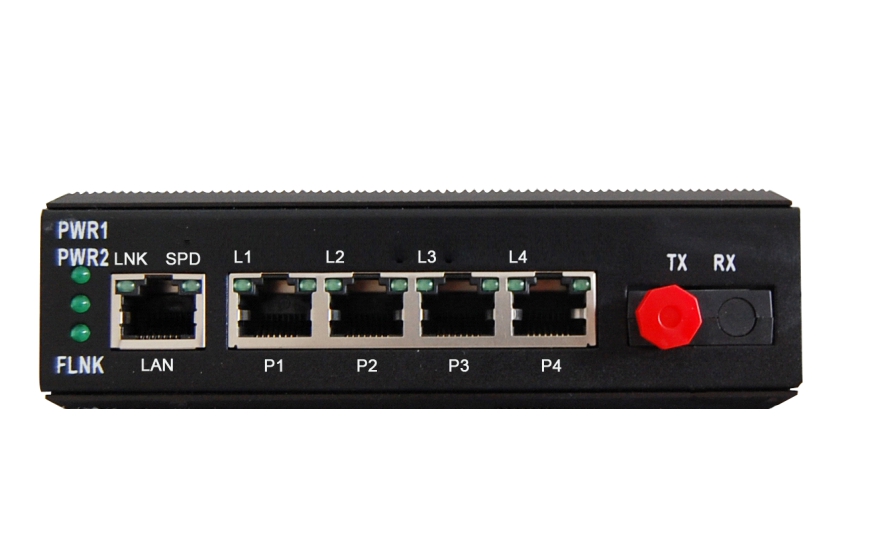

Industrial Rail ４*Voice +1*FE Fiber MUX

Type:FCPG-O4F1/FCPG-S4F1 Message

Description:This series of products, is developed in the companys special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice access, 1*FE interface (wire speed

Product Description
  This series of products, is developed in the company's special ultra-large scale integrated circuits based on the development of point-to-point optical transmission equipment. This product provides 4* Voice  access, 1*FE  interface (wire  speed  100M).
Functional Properties
◆  Based on independent intellectual property rights of integrated circuits;
◆  Voice port support FXO / FXS / E&M2-4  / 2-4 wire audio / magnet telephone interface, FXO port and program-controlled switches docking, FXS port and the user's telephone connected;
◆  1-4 voice access, support caller ID / reverse polarity billing / fax function; support each site of the number of features;
◆  1 channel FE Ethernet, bandwidth for the wire speed 100M, automatically adapt to 10/100Mbps environment, easy to upgrade the network;
◆  Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability, MDI / MDI-X adaptive without manual adjustment;
◆  Optical port without relay transmission distance of up to 2 to 120 km;
◆  Support 2U chassis card, support SNMP network management;
◆  Support a wide range of AC and DC input;
◆  Support internal isolation, redundant dual power input;
◆  Power supply support overload protection, anti-reverse protection;
◆  Meet the requirements of industrial four electromagnetic compatibility;
◆  Super lightning protection: anti-lightning, anti-sensor high pressure, anti-surge, etc .;
◆  No fan efficient cooling, reduce the repair time;
◆  IP40 enclosure protection class, able to withstand the harsh environment of the test;

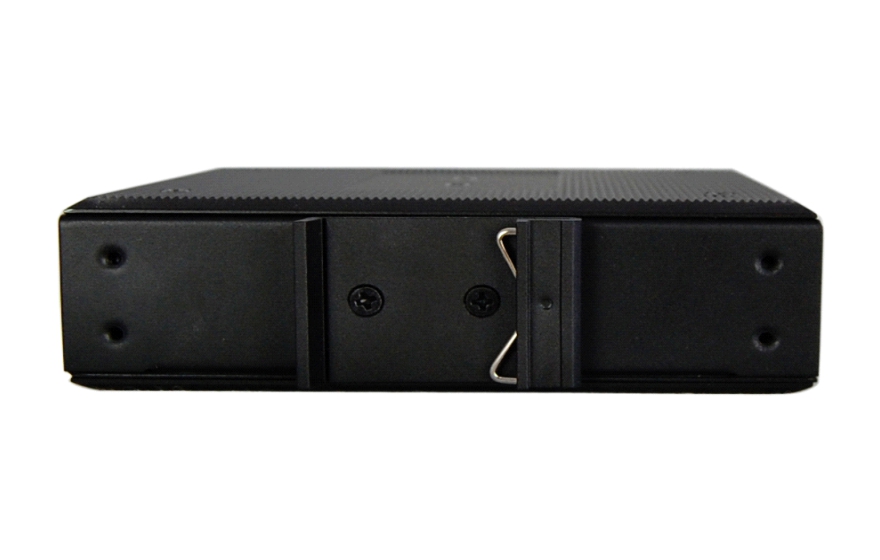

◆  Rail or wall mounted Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃, all models are 100% roasting machine test;
◆  Telephone / ethernet  interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
Technical Parameters

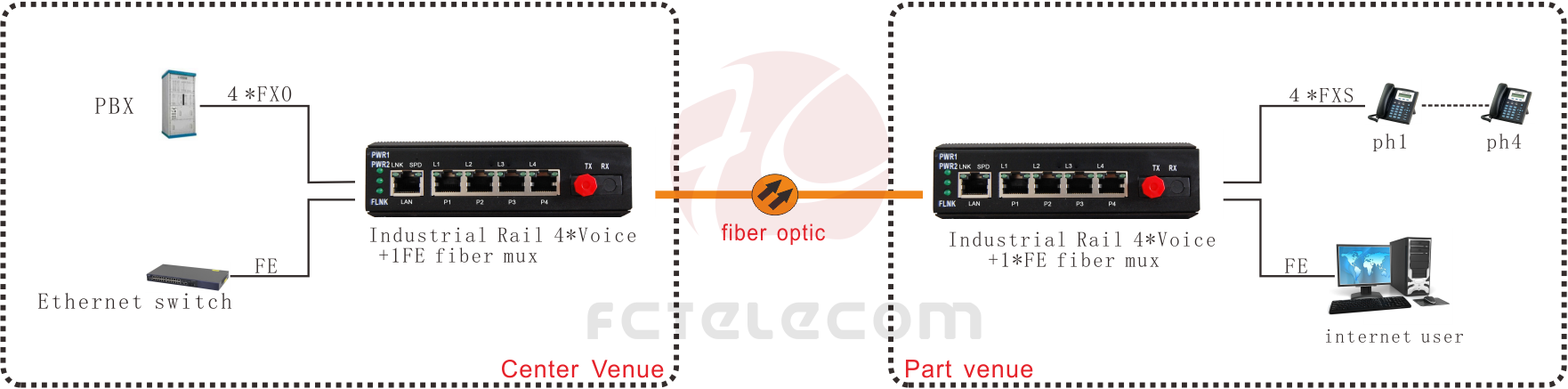

Application Scheme
DataSheet Download
